Printed Circuit Board Test Cell

Introduction

Introducing the latest innovation from Absolute Robotics; the printed circuit board test cell.

Having built up a large customer base requiring PCB testing solutions, Absolute Robotics has taken its experience of delivering solutions in this sector and coupled this with a flexible, modular approach to reimagine the future of PCB testing.

At the very heart of the Printed Circuit Board Test Cell is the latest range of collaborative robots from Techman and Omron, the TM-S Series.

Absolute Robotics Printed Circuit Board Test Cell Main Render
Omron TM5S Collaborative Robot

Featuring

  • Six-axis motion allowing full flexibility in how PCB’s and test fixtures are handled.
  • Built-in machine vision camera.
  • 31 safety functions, meeting ISO 13849-1, Cat3, PLd and ISO 10218-1 safety standards, certified by TUV Nord.
  • Easy-to-use graphical programming environment for quick start up and operation.
  • Simple hand-guidance for repositioning the robot.
  • Capability to integrate with mobile robots enables fully autonomous machine tending and logistics handling applications.
  • Fieldbus models including EtherNet/IP and Profinet.

Options

Rapid Changeover

Rapid changeover of robot tooling and test fixtures allows the cell to be used for many different PCB types and functions.

PCB Breakout

A second robot can be added to allow PCB panels to be automatically taken from a magazine and broken out before they are tested.

Machine Interaction

Physical interaction with equipment which requires manual intervention e.g. operating lids, levers, doors or initiating processes.

Labelling

Automated labelling of components for tracking or production purposes.

Component Inspection

The integrated vision system is one of the big advantages of TM collaborative robots. It is designed for industrial grade pattern recognition, object positioning, and feature identification. This can be set up without going through the complex steps of integrating external cameras or lighting equipment. It can be utilised for parts inspection (AOI), measurement and visual functional checks e.g. LED functionality or even reading test results from an instrument display.

Conveyor Systems

The Printed Circuit Board Test Cell can be integrated with existing in-feed and out-feed conveyors, or it can be supplied with a conveyor system tailored to your requirements.

Data Intergration

Track, analyse and integrate test data with your existing quality systems.

Dimensions

Absolute Robotics Printed Circuit Board Test Cell Front Render

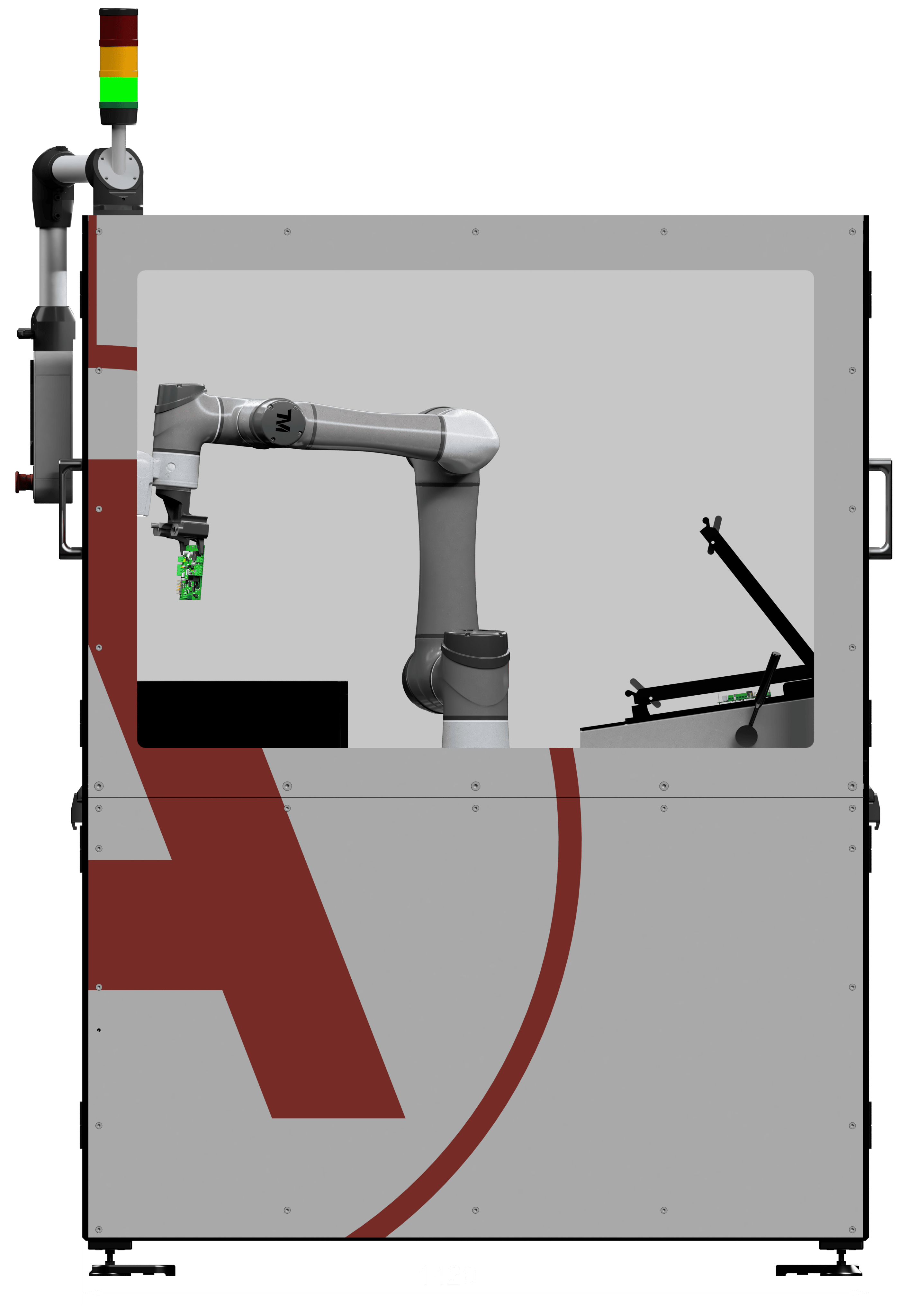

Absolute Robotics Printed Circuit Board Test Cell Side Render
